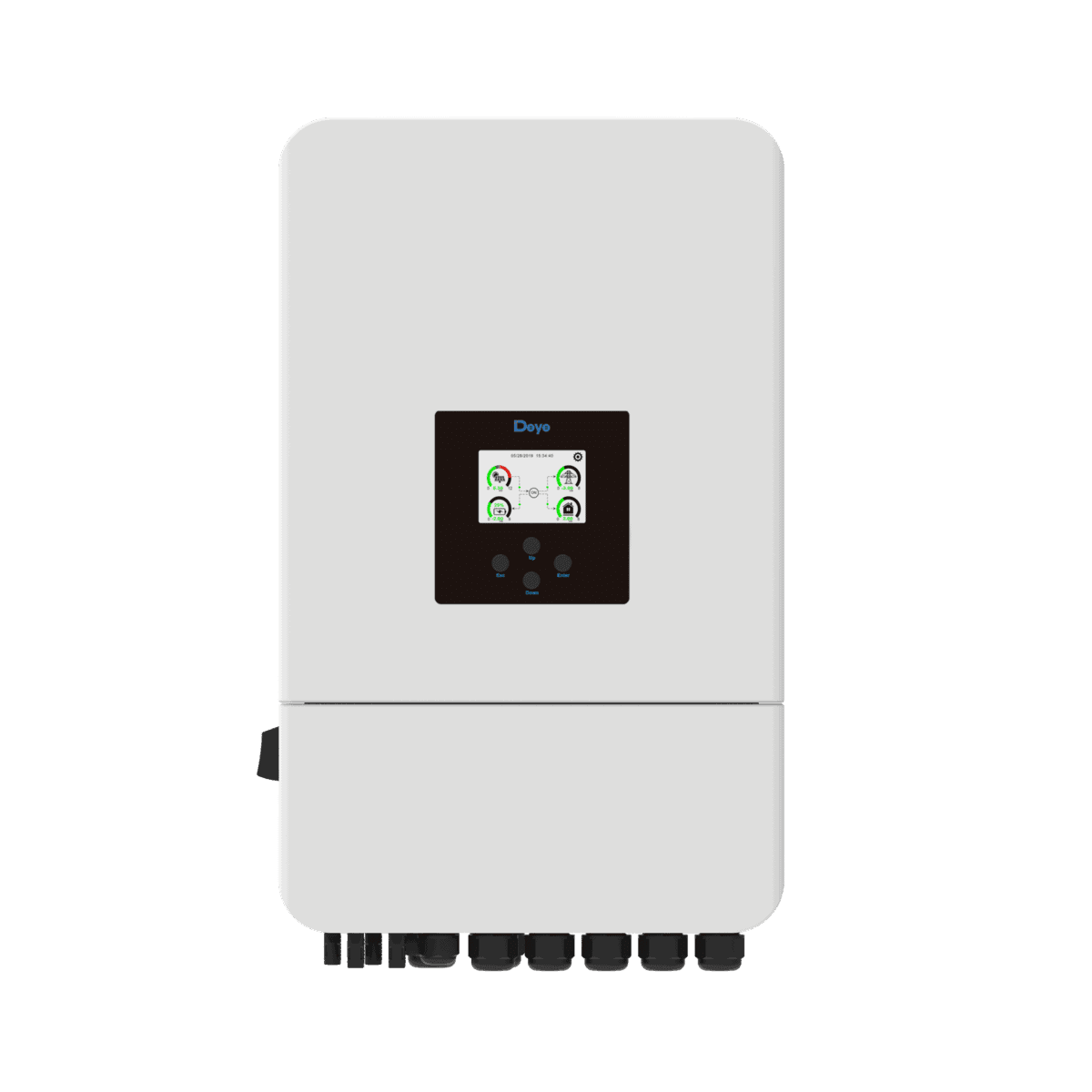

Hybrid inverterSUN-3.6K-SG05LP1-EU-SM2-P
3.6 kW single-phase hybrid inverter, EU version.
- AC output
- 3.6 kW
- Max. charge current
- 90 A
Deye / SUN seriesHybrid inverterSingle-phase hybrid inverter
Single-phase hybrid.Solar, battery and grid on one inverter.
Inverters / Single-phase
SUN-6K-SG05LP1-EU-SM2-P
Single-phase hybrid inverter · EU version
A single-phase hybrid inverter for grid-connected solar with low-voltage battery storage. Select the power class, review the specifications and bring your requirements to VOLFAC.
- AC output
- 6 kW
- MPPT trackers
- 2
- Battery voltage range
- 40–60 V
- Enclosure protection
- IP65
Select power classSG05LP1-EU-SM2-P familySUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P family
Share your quantity and delivery destination.
Product overview
Solar, battery and grid on a single phase.
The SUN-6K-SG05LP1-EU-SM2-P connects two MPPT inputs, a 40–60 V lead-acid or lithium-ion battery and the single-phase grid. Deye lists AC coupling for existing PV systems, energy storage from a diesel generator and parallel operation of up to 16 units, on-grid or off-grid, with several batteries in parallel.
- Two MPPT trackersTwo MPP trackers for PV input up to 500 V across a 150–425 V MPPT range.
- Up to 210 A battery currentCharging and discharging current from 90 A on the 3.6 kW model to 210 A on the 10 kW model.
- AC couplingAC-couple an existing solar system to add storage.
- Six charging periodsSix time periods for battery charging and discharging.
Technical specifications
Know the details.
SUN-6K-SG05LP1-EU-SM2-PDeyeFamily SG05LP1-EU-SM2-PModel SUN-6K-SG05LP1-EU-SM2-P
Brand DeyeFamily SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-PSelected model SUN-6K-SG05LP1-EU-SM2-P
AC output and grid connection
- Rated AC output power
- 6,000 W
- Max. AC output apparent power
- 6,600 VA
- Rated AC output current (220 V / 230 V)
- 27.3 A / 26.1 A
- Max. AC output current (220 V / 230 V)
- 30 A / 28.7 A
- Grid connection
- Single-phase, L+N+PE
- Rated grid voltage
- 220/230 V (0.85–1.1 Un)
- Grid frequency
- 50 Hz / 60 Hz
- Max. continuous AC passthrough
- 40 A
- Peak power (off-grid)
- 2 × rated power for 10 s
- Power factor
- 0.8 leading to 0.8 lagging
- THDi
- < 3 % of nominal power
- Max. efficiency
- 97.6 %
- Euro efficiency
- 96.5 %
- MPPT efficiency
- > 99 %
PV input and MPPT
- Max. PV input power
- 9,600 W
- Max. PV access power (array)
- 12,000 W
- Max. PV input voltage
- 500 V
- MPPT voltage range
- 150–425 V
- Rated PV input voltage
- 370 V
- Start-up voltage
- 125 V
- MPP trackers
- 2
- Strings per MPP tracker
- 1 + 1
- Max. operating PV input current
- 18 A + 18 A
- Max. PV short-circuit current
- 27 A + 27 A
Battery input
- Battery type
- Lead-acid or lithium-ion
- Battery voltage range
- 40–60 V
- Max. charging / discharging current
- 135 A
- Charging strategy (Li-ion)
- Self-adaptation to BMS
- Battery inputs
- 1
Protection and operating conditions
- Ingress protection
- IP65
- Operating temperature
- −40 °C to +60 °C, derating above 45 °C
- Relative humidity
- 0–100 %
- Max. altitude
- 2,000 m
- Noise
- < 45 dB
- Overvoltage category
- OVC II (DC), OVC III (AC)
- Topology
- Non-isolated (solar), isolated (battery)
- Cooling
- Intelligent air cooling
- Surge protection
- Type II (DC), Type II (AC)
- Display and communication
- LCD; Wi-Fi, RS485, CAN
- Grid standards
- IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE R25, G99, VDE-AR-N 4105
- Safety / EMC
- IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4
Dimensions and weight
- Cabinet size (W × H × D)
- 366 × 589.5 × 237 mm, excluding connectors and brackets
- Weight
- 26.8 kg
Source: Deye product pageDeye — SUN-3.6/5/6/7/7.6/8/10K-SG05LP1-EU-SM2-P product page and the technical datasheet (EU version, July 2026). Values apply to the EU version only.
