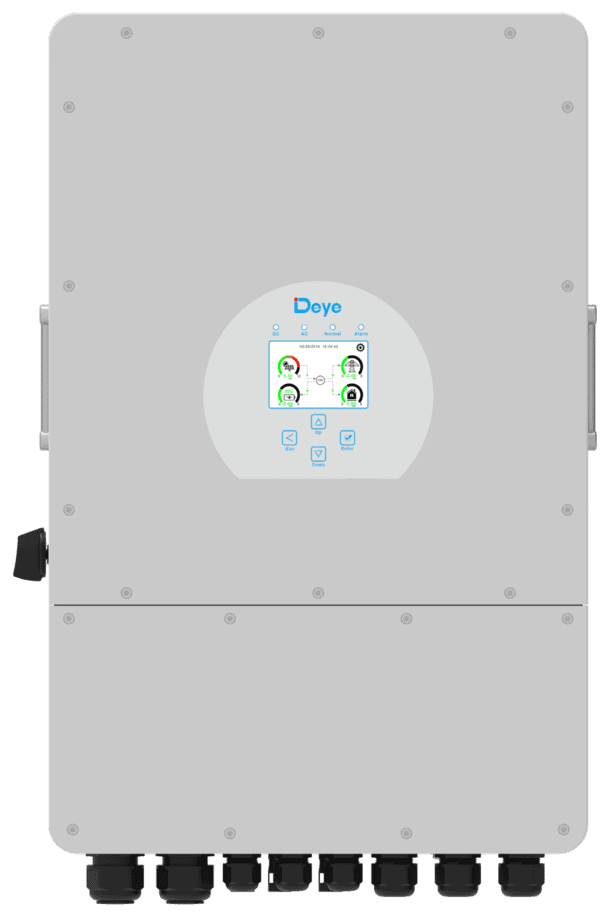

Hybrid inverterSUN-6K-SG04LP3-EU
6 kW three-phase hybrid inverter, EU version.
- AC output
- 6 kW
- Max. charge current
- 150 A
Deye / SUN seriesHybrid inverterThree-phase hybrid inverter
Three-phase hybrid.Solar, battery and grid on one inverter.
Inverters / Three-phase
SUN-10K-SG04LP3-EU
Three-phase hybrid inverter · EU version
A three-phase hybrid inverter for grid-connected solar with low-voltage battery storage. Select the power class, review the specifications and bring your requirements to VOLFAC.
- AC output
- 10 kW
- MPPT trackers
- 2
- Battery voltage range
- 40–60 V
- Enclosure protection
- IP65
Select power classSG04LP3-EU familySUN-5/6/8/10/12K-SG04LP3-EU family
Share your quantity and delivery destination.
Product overview
Solar, battery and grid, on three phases.
The SUN-10K-SG04LP3-EU sits between the PV array, a 48 V battery bank and the three-phase grid. It converts DC from two MPPT inputs, charges and discharges the battery and supplies three-phase loads from solar, battery, grid or a generator — on-grid, off-grid or as UPS backup. Output is 100 % unbalanced-capable with up to 50 % of rated power on a single phase, and up to ten units can be paralleled for larger sites.
- Two MPPT trackersTwo independent MPP trackers take PV input up to 800 V across a 200–650 V MPPT range.
- Low-voltage battery supportLead-acid or lithium-ion batteries from 40 to 60 V; the charging strategy adapts to the battery BMS.
- AC couplingRetrofit an existing grid-tied PV system by AC-coupling it to the inverter.
- Programmable charging periodsSix time periods for battery charging and discharging.
Technical specifications
Know the details.
SUN-10K-SG04LP3-EUDeyeFamily SG04LP3-EUModel SUN-10K-SG04LP3-EU
Brand DeyeFamily SUN-5/6/8/10/12K-SG04LP3-EUSelected model SUN-10K-SG04LP3-EU
AC output and grid connection
- Rated AC output power
- 10,000 W
- Max. AC output apparent power
- 11,000 VA
- Rated AC output current
- 15.2 A / 14.5 A
- Max. AC output current
- 16.7 A / 15.9 A
- Grid connection
- Three-phase, 3L+N+PE
- Rated grid voltage
- 220/380 V or 230/400 V (0.85–1.1 Un)
- Grid frequency
- 50 Hz / 60 Hz
- Max. continuous AC passthrough
- 40 A
- Peak power (off-grid)
- 2 × rated power for 10 s
- Power factor
- 0.8 leading to 0.8 lagging
- Max. efficiency
- 97.6 %
- Euro efficiency
- 97.0 %
PV input and MPPT
- Max. PV input power
- 15,000 W
- Max. PV access power (array)
- 20,000 W
- Max. PV input voltage
- 800 V
- MPPT voltage range
- 200–650 V
- Rated PV input voltage
- 550 V
- Start-up voltage
- 160 V
- MPP trackers
- 2
- Strings per MPP tracker
- 2 + 1
- Max. operating PV input current
- 26 A + 13 A
- Max. PV short-circuit current
- 34 A + 17 A
Battery input
- Battery type
- Lead-acid or lithium-ion
- Battery voltage range
- 40–60 V
- Max. charging current
- 210 A
- Max. discharging current
- 210 A
- Charging strategy (Li-ion)
- Self-adaptation to BMS
- Battery inputs
- 1
Protection and operating conditions
- Ingress protection
- IP65
- Operating temperature
- −40 °C to +60 °C, derating above 45 °C
- Relative humidity
- 0–100 %
- Max. altitude
- 2,000 m
- Noise
- < 55 dB
- Overvoltage category
- OVC II (DC), OVC III (AC)
- Topology
- Non-isolated (solar), isolated (battery)
- Cooling
- Intelligent air cooling
- Grid standards
- IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE R25, G99, VDE-AR-N 4105
- Safety / EMC
- IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4
Dimensions and weight
- Cabinet size (W × H × D)
- 422 × 658 × 254 mm, excluding connectors and brackets
- Weight
- 38 kg
Source: Deye product pageDeye — SUN-5/6/8/10/12K-SG04LP3-EU product page and the technical datasheet (EU version, July 2026). Values apply to the EU version only.
Downloads
Product documents.
- Technical datasheetSG04LP3-EU family · English · PDFSUN-5/6/8/10/12K-SG04LP3-EU · English · PDF
- User and installation manualSG04LP3-EU family · English · PDFSUN-5/6/8/10/12K-SG04LP3-EU · English · PDF
- EU declaration of conformitySG04LP3-EU family · English · PDFSUN-5/6/8/10/12K-SG04LP3-EU · English · PDF
Request a quotation.Share your quantity and delivery destination. We reply with a quotation for SUN-10K-SG04LP3-EU, not an order confirmation.
