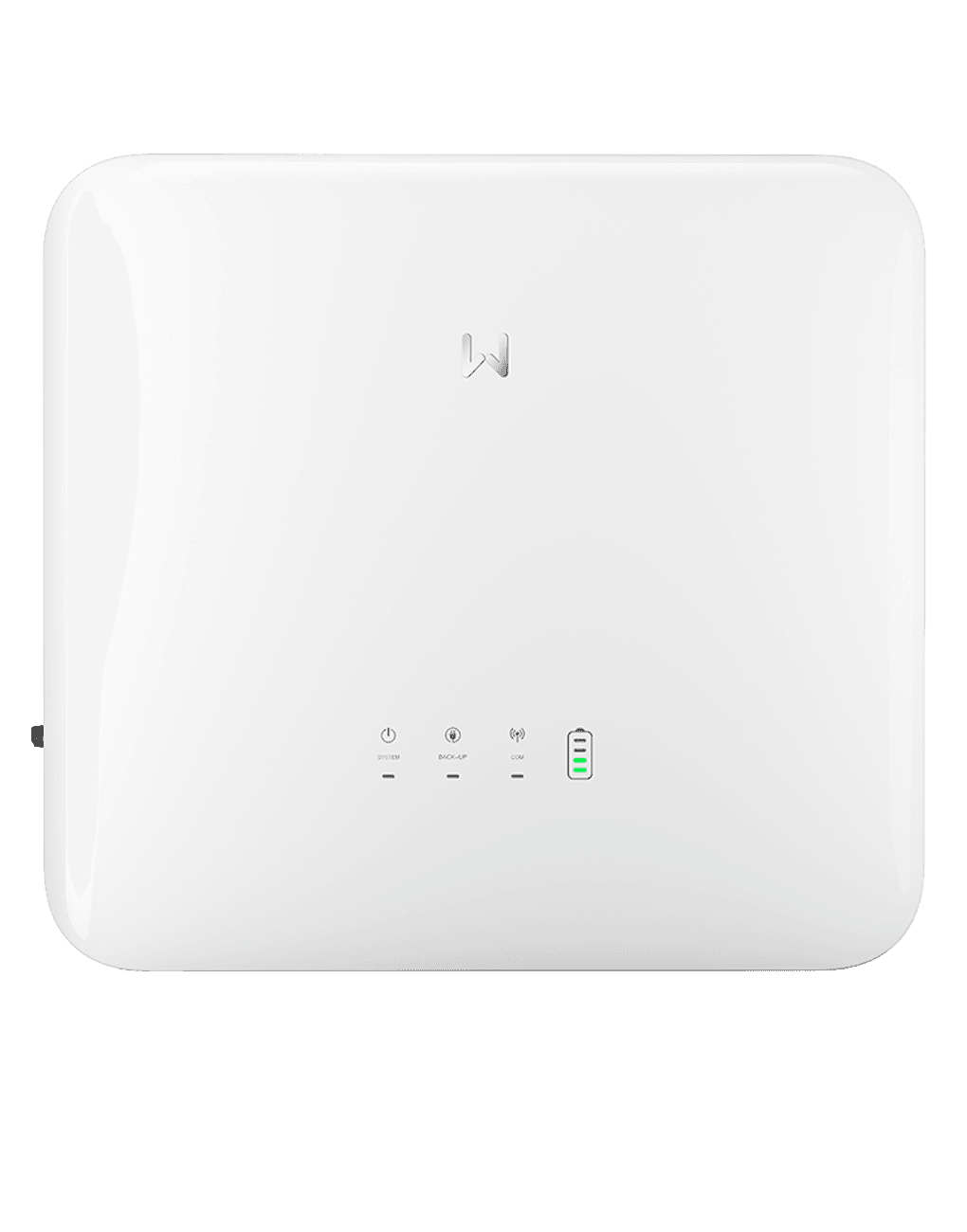

Hybrid inverterGW6000-ET-20
6 kW three-phase hybrid inverter for high-voltage batteries.
- AC output
- 6 kW
- MPPT trackers
- 2
GoodWe / ET G2 seriesHybrid inverterThree-phase hybrid inverter
Three-phase hybrid.For high-voltage batteries, 6 to 15 kW.
Inverters / Three-phase
GW10K-ET-20
Three-phase hybrid inverter · high-voltage battery
A three-phase hybrid inverter for solar with high-voltage battery storage. Select the power class, review the specifications and bring your requirements to VOLFAC.
- AC output
- 10 kW
- MPPT trackers
- 3
- Max. efficiency
- 98.2 %
- Enclosure protection
- IP66
Select power classET G2 familyET G2, 6–15 kW family
Share your quantity and delivery destination.
Product overview
The second generation of the ET series.
The GW10K-ET-20 connects two or three MPPT inputs, a 150–720 V lithium-ion battery and the three-phase grid. GoodWe adds 12 and 15 kW classes in this generation, allows PV input up to 160 % of nominal power and supports up to four units in parallel. The backup output switches in under 10 ms, and an integrated dry contact can switch external loads.
- Two or three MPPT inputsTwo MPPT inputs on the 6 and 8 kW models, three from 10 kW; 16 A per MPPT, 120–850 V.
- High-voltage batteryLithium-ion batteries from 150 to 720 V with up to 40 A continuous charge and discharge current.
- Backup in under 10 msUPS-level switching to the backup output in under 10 ms.
- IP66, Type II SPDIP66 enclosure with Type II surge protection on the DC and AC sides; AFCI 3.0 is optional.
Technical specifications
Know the details.
GW10K-ET-20GoodWeFamily ET G2Model GW10K-ET-20
Brand GoodWeFamily ET G2, 6–15 kWSelected model GW10K-ET-20
Battery input
- Battery type
- Lithium-ion (LFP or ternary lithium)
- Nominal battery voltage
- 500 V
- Battery voltage range
- 150–720 V
- Start-up voltage
- 150 V
- Battery inputs
- 1
- Max. continuous charging current
- 40 A
- Max. continuous discharging current
- 40 A
- Max. charging power
- 15,000 W
- Max. discharging power
- 11,000 W
PV input
- Max. input power (not continuous)
- 16,000 W
- Max. input voltage
- 1,000 V (max. operating voltage 950 V)
- MPPT operating voltage range
- 120–850 V
- Start-up voltage
- 150 V
- Nominal input voltage
- 620 V
- Max. input current per MPPT
- 16 A
- Max. short-circuit current per MPPT
- 24 A
- MPP trackers
- 3
- Strings per MPPT
- 1
AC output (on-grid)
- Nominal output power
- 10,000 W
- Max. apparent power to the grid
- 10,000 VA
- Max. apparent power from the grid
- 20,000 VA
- Nominal output voltage
- 400 / 380 V, 3L / N / PE
- Output voltage range (phase voltage)
- 170–290 V
- Nominal grid frequency
- 50 / 60 Hz (45–65 Hz)
- Max. AC current to the grid
- 14.5 A
- Max. AC current from the grid
- 26.1 A
- Power factor
- 0.8 leading to 0.8 lagging
- Max. total harmonic distortion
- < 3 %
AC output (backup)
- Backup nominal apparent power
- 10,000 VA
- Max. apparent power without grid
- 10,000 VA (18,000 VA for 60 s)
- Max. output current
- 21.7 A (26.1 A for 60 s)
- Nominal output voltage
- 400 / 380 V
- Nominal output frequency
- 50 / 60 Hz
- Output THDv (linear load)
- < 3 %
Efficiency
- Max. efficiency
- 98.2 %
- European efficiency
- 97.5 %
- Max. battery to AC efficiency
- 97.5 %
- MPPT efficiency
- 99.5 %
Protection
- PV insulation resistance detection
- Integrated
- PV AFCI 3.0
- Optional
- Residual current monitoring
- Integrated
- PV reverse polarity protection
- Integrated
- Battery reverse polarity protection
- Integrated
- Anti-islanding protection
- Integrated
- AC overcurrent, short-circuit and overvoltage protection
- Integrated
- DC switch
- Integrated
- DC surge protection
- Type II
- AC surge protection
- Type II
- Remote shutdown
- Integrated
General data
- Operating temperature range
- −35 °C to +60 °C
- Relative humidity
- 0–100 %
- Max. operating altitude
- 4,000 m
- Cooling method
- Natural convection
- User interface
- LED, WLAN and app
- Communication with BMS
- RS485, CAN
- Communication with meter
- RS485
- Communication with portal
- Wi-Fi, LAN and Bluetooth
- Weight
- 25 kg
- Dimensions (W × H × D)
- 496 × 460 × 221 mm
- Topology
- Non-isolated
- Ingress protection
- IP66
- Mounting
- Wall mounted
Source: GoodWe product pageGoodWe — ET G2 product page and the datasheet (EN, V2.1, 8 August 2025). Some values depend on local grid regulations.
Downloads
Product documents.
- Technical datasheetET G2 series · English · PDFET G2 series, GW6000-ET-20 to GW15K-ET-20 · English · PDF
- User manual — residential smart inverter solutionsET G2 6–15 kW · English · PDFET G2 6–15 kW with Lynx F and Lynx D batteries · English · PDF
- Quick guide — residential smart inverter solutionsET G2 6–15 kW · English · PDFET G2 6–15 kW with Lynx F batteries · English · PDF
- Quick installation guideET G2 series · Multilingual · PDFET G2 series · Multilingual · PDF
- EU declaration of conformityET G2 series · Multilingual · PDFGW6000-ET-20 to GW15K-ET-20 · Multilingual · PDF
- Safety certificate IEC/EN 62109-1/-2ET G2 series · English · PDFGW6000-ET-20 to GW15K-ET-20 · English · PDF
- Battery compatibility overviewGoodWe storage inverters · English · PDFGoodWe storage inverters, including ET G2 · English · PDF
Request a quotation.Share your quantity and delivery destination. We reply with a quotation for GW10K-ET-20, not an order confirmation.
