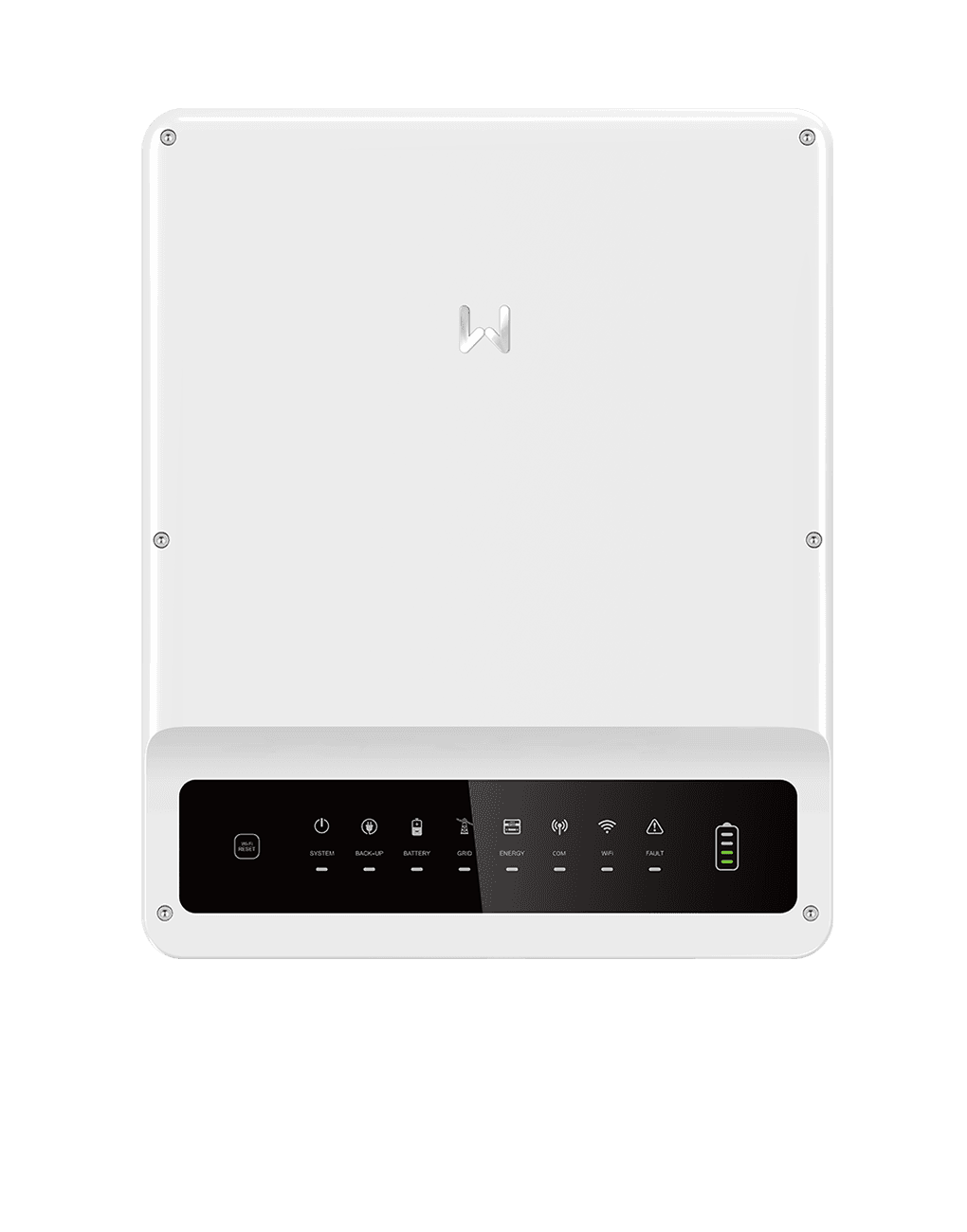

Hybrid inverterGW5KN-ET
5 kW three-phase hybrid inverter, 16 A per MPPT.
- AC output
- 5 kW
- PV current per MPPT
- 16 A
GoodWe / ET PLUS+ seriesHybrid inverterThree-phase hybrid inverter
Three-phase hybrid.For high-voltage batteries, 5 to 10 kW.
Inverters / Three-phase
GW10KN-ET
Three-phase hybrid inverter · high-voltage battery
A three-phase hybrid inverter for solar with high-voltage battery storage, in two versions of PV input current. Select the model, review the specifications and bring your requirements to VOLFAC.
- AC output
- 10 kW
- MPPT trackers
- 2
- PV current per MPPT
- 16 A
- Enclosure protection
- IP66
Select modelET PLUS+ familyET PLUS+ and ET PLUS+ (16A) family
Share your quantity and delivery destination.
Product overview
Two PV input versions, one platform.
The GW10KN-ET connects two MPPT inputs, a 180–600 V lithium-ion battery and the three-phase grid, with fanless cooling in an IP66 housing. GoodWe publishes two versions: the GW…K-ET models take 12.5 A per MPPT, the GW…KN-ET models 16 A and add peak shaving and a dry contact for external loads. Smart load control is listed for both.
- 12.5 A or 16 A per MPPTTwo MPPT inputs, 200–850 V; 12.5 A on GW…K-ET models, 16 A on GW…KN-ET models.
- High-voltage batteryLithium-ion batteries from 180 to 600 V with 25 A continuous charge and discharge current.
- Backup outputBackup output at nominal power, with 10,000 to 16,500 VA available for 60 seconds depending on the model.
- IP66, fanlessIP66 enclosure with natural convection cooling and Type II DC surge protection.
Technical specifications
Know the details.
GW10KN-ETGoodWeFamily ET PLUS+Model GW10KN-ET
Brand GoodWeFamily ET PLUS+ and ET PLUS+ (16A)Selected model GW10KN-ET
Battery input
- Battery type
- Lithium-ion
- Nominal battery voltage
- 500 V
- Battery voltage range
- 180–600 V
- Start-up voltage
- 180 V
- Battery inputs
- 1
- Max. continuous charging current
- 25 A
- Max. continuous discharging current
- 25 A
- Max. charging power
- 10,000 W
- Max. discharging power
- 10,000 W
PV input
- Max. input power
- 15,000 W
- Max. input voltage
- 1,000 V (max. operating voltage 950 V)
- MPPT operating voltage range
- 200–850 V
- Start-up voltage
- 180 V
- Nominal input voltage
- 620 V
- Max. input current per MPPT
- 16 A
- Max. short-circuit current per MPPT
- 21.2 A
- MPP trackers
- 2
- Strings per MPPT
- 1
AC output (on-grid)
- Nominal output power
- 10,000 W
- Max. apparent power to the grid
- 11,000 VA
- Max. apparent power from the grid
- 15,000 VA
- Nominal output voltage
- 400 / 380 V, 3L / N / PE
- Output voltage range
- 0–300 V
- Nominal grid frequency
- 50 / 60 Hz (45–65 Hz)
- Max. AC current to the grid
- 16.5 A
- Max. AC current from the grid
- 22.7 A
- Power factor
- ~1 (adjustable from 0.8 leading to 0.8 lagging)
- Max. total harmonic distortion
- < 3 %
AC output (backup)
- Backup nominal apparent power
- 10,000 VA
- Max. apparent power without grid
- 10,000 VA (16,500 VA for 60 s)
- Max. output current
- 16.5 A
- Nominal output voltage
- 400 / 380 V
- Nominal output frequency
- 50 / 60 Hz
- Output THDv (linear load)
- < 3 %
Efficiency
- Max. efficiency
- 98.2 %
- European efficiency
- 97.5 %
- Max. battery to AC efficiency
- 97.5 %
- MPPT efficiency
- 99.9 %
Protection
- PV insulation resistance detection
- Integrated
- Residual current monitoring
- Integrated
- PV reverse polarity protection
- Integrated
- Anti-islanding protection
- Integrated
- AC overcurrent, short-circuit and overvoltage protection
- Integrated
- DC switch
- Integrated
- DC surge protection
- Type II
- AC surge protection
- Type III
- Remote shutdown
- Integrated
General data
- Operating temperature range
- −35 °C to +60 °C
- Relative humidity
- 0–95 %
- Max. operating altitude
- 4,000 m
- Cooling method
- Natural convection
- User interface
- LED, app
- Communication with BMS
- RS485, CAN (CAN by default)
- Communication with meter
- RS485
- Communication with portal
- Wi-Fi; Wi-Fi + LAN or 4G optional
- Weight
- 24 kg
- Dimensions (W × H × D)
- 415 × 516 × 180 mm
- Topology
- Non-isolated
- Self-consumption at night
- < 15 W (no backup output)
- Ingress protection
- IP66
- Mounting
- Wall mounted
Source: GoodWe product pageGoodWe — ET PLUS+ product page and the datasheets ET PLUS+ (V2.1, 30 August 2023) and ET PLUS+ (16A) (V2.1, 6 March 2024). Some values depend on local grid regulations.
