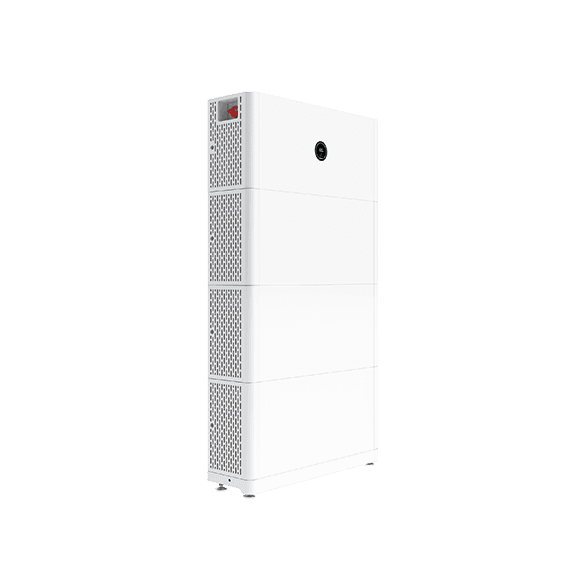

Battery systemAPX 5.0P
5 kWh system with 1 battery module.
- Energy capacity
- 5 kWh
- Battery modules
- 1
Growatt / APX seriesBattery systemHigh-voltage battery system
Modular HV battery.5 kWh modules, one to six per system.
Energy storage / High voltage
APX 10.0P
Modular high-voltage LFP battery system
A stacked high-voltage battery system built from 5 kWh modules, for Growatt storage inverters. Select the capacity, review the specifications and bring your requirements to VOLFAC.
- Energy capacity
- 10 kWh
- Battery modules
- 2
- Depth of discharge
- 90 %
- Protection
- IP66
Select capacityAPX HV familyAPX 5.0–30.0P family
Share your quantity and delivery destination.
Product overview
One to six modules under one power module.
The APX 10.0P combines APX 5.0P-B1 battery modules of 5 kWh each with a power module chosen for the inverter: APX 55027-P0 for single-phase MIN-XH inverters, APX 98020-P1 or APX 98034-P2 for three-phase MOD-XH(BP) and MID-XH inverters. Each module carries its own energy optimiser, so modules with different state of charge and state of health — new and old — can work in one system.
- 5 to 30 kWhOne to six battery modules of 5 kWh, stacked on a base or wall mounted.
- Module-level optimisationModule-level energy optimisation lets new and old modules be mixed in one system.
- Cobalt-free LFPCobalt-free lithium iron phosphate cells; depth of discharge 90 %.
- IP66IP66 with natural cooling for −10 °C to 50 °C ambient temperature.
Technical specifications
Know the details.
APX 10.0PGrowattFamily APX HVModel APX 10.0P
Brand GrowattFamily APX 5.0–30.0PSelected model APX 10.0P
System
- Battery module
- APX 5.0P-B1, 5 kWh
- Number of battery modules
- 2
- Energy capacity
- 10 kWh
- Number of power modules
- 1
- Battery type
- Cobalt-free lithium iron phosphate (LFP)
- Depth of discharge
- 90 %
- Ingress protection
- IP66
- Installation
- Wall mounted (extra bracket) or floor installation (extra base, 690 / 185 / 60 mm)
- Operating ambient temperature
- −10 °C to 50 °C
- Relative humidity
- 5–95 %
- Cooling
- Natural
- Altitude
- ≤ 4,000 m
Single-phase systems (APX …P-S0, power module APX 55027-P0)
- Nominal power
- 5 kW
- Peak output power (60 s)
- 8 kW
- Dimensions (W / D / H), with power module and base
- 690 / 185 / 870 mm
- Weight, with power module and base
- 112 kg
- Nominal voltage
- 450 V
- Operating voltage range
- 380–550 V
- Power module
- 690 / 185 / 220 mm, 10 kg; 17 A maximum, 27 A peak for 60 s; 6.2 kW
- Compatible inverters
- MIN 2500-6000TL-XH (firmware update required)
Three-phase systems (APX …P-S1 / -S2, power module APX 98020-P1 or APX 98034-P2)
- Max. output power with APX 98020-P1
- 5 kW
- Peak output power with APX 98020-P1 (60 s)
- 8 kW
- Max. output power with APX 98034-P2
- 5 kW
- Peak output power with APX 98034-P2 (60 s)
- 8 kW
- Dimensions (W / D / H), with power module and base
- 690 / 185 / 945 mm
- Weight, with power module and base
- 118 kg
- Nominal voltage
- 650 V
- Operating voltage range
- 600–980 V
- Power module APX 98020-P1
- 690 / 185 / 295 mm, 16 kg; 13 A maximum, 20 A peak for 60 s; 7.5 kW
- Power module APX 98034-P2
- 690 / 185 / 295 mm, 16 kg; 26 A maximum, 34 A peak for 60 s; 15 kW
- Compatible inverters
- P1: MOD 3000-10000TL3-XH(BP) · P2: MOD 3000-10000TL3-XH(BP) and MID 11-30KTL3-XH
Battery module APX 5.0P-B1
- Nominal energy
- 5 kWh
- Nominal voltage
- 385 V
- Operating voltage range
- 330–450 V
- Dimensions (W / D / H)
- 690 / 185 / 295 mm
- Weight
- 50 kg
- Communication port
- CAN / RS485
- Monitoring parameters
- SOC, system voltage, current, cell voltage, cell temperature, PCBA temperature
Standards
- Certificates
- IEC 62040, IEC 62477, IEC 62619, CE, RCM, VDE 2510-50, UKCA, UN 38.3
Manufacturer warranty statement
- Warranty
- 10 years
Source: Growatt product pageGrowatt — APX HV Battery product page and the datasheets APX 5.0-30.0P-S0 and APX 5.0-30.0P-S1 / -S2 (May 2024). System power is also limited by the inverter.
